Are DC Motors More Efficient Than AC?

Are DC Motors More Efficient Than AC? A Professional Engineering Perspective

The debate over whether Direct Current (DC) motors are more efficient than Alternating Current (AC) motors is a common one in engineering and industrial design. While the question seems straightforward, the answer is anything but simple. From a technical standpoint, efficiency cannot be determined by motor type alone—it depends on the specific technology, control method, operating conditions, and system-level integration.

Rather than a blanket comparison, the real question should be: Which motor technology delivers higher system efficiency for a given application? In most modern variable-speed applications, the answer increasingly favors brushless DC (BLDC) motors, particularly when compared to the most widely used AC motor: the induction motor.

Understanding Motor Efficiency: Where Energy Is Lost

To make an accurate comparison, it’s essential to understand the primary sources of energy loss in electric motors. These losses convert electrical input into waste heat instead of useful mechanical output and include:

• Copper losses (I²R losses): Heat generated by electrical resistance in the stator windings (and rotor windings in induction motors).
• Iron losses (core losses): Caused by hysteresis and eddy currents in the laminated steel core. These increase with frequency and flux density.
• Mechanical losses: Friction in bearings and, in brushed motors, between brushes and the commutator. Windage (air resistance) also contributes.
• Stray load losses: Minor but real losses due to flux distortion, harmonic content, and uneven current distribution.

A motor’s overall efficiency is determined by how well its design minimizes these combined losses across its intended operating range.

Why DC Motors—Especially BLDC—Can Be More Efficient

It’s important to distinguish between traditional brushed DC motors and modern brushless DC (BLDC) motors, as their efficiency profiles differ significantly.

Brushed DC motors, while simple and controllable, suffer from inherent inefficiencies—typically achieving 75–80% efficiency. The brush-commutator interface introduces both mechanical friction and electrical arcing, resulting in energy loss and wear over time.

In contrast, BLDC motors—a type of permanent magnet synchronous motor (PMSM)—eliminate these drawbacks through electronic commutation. This design offers two major efficiency advantages:

• No brush losses: By replacing mechanical brushes with an electronic controller, both friction and arcing losses are eliminated.
• No rotor copper losses: The rotor uses permanent magnets instead of induced current. This removes the I²R losses in the rotor, which are a significant source of inefficiency in AC induction motors.

As a result, high-quality BLDC motor systems (motor + controller) can achieve peak efficiencies of 85% to 95%, and—critically—they maintain high efficiency across a wide range of speeds and loads. This flat efficiency curve makes them ideal for applications with variable duty cycles, such as electric vehicles, HVAC systems, and industrial automation.

The AC Induction Motor: A Proven Workhorse with Trade-offs

The AC induction motor, particularly the squirrel-cage type, remains the most widely deployed motor in industry due to its ruggedness, simplicity, and low initial cost. It operates by inducing current in the rotor via the stator’s rotating magnetic field.

However, this very principle introduces a key inefficiency: the rotor must carry current to generate its magnetic field, leading to rotor I²R losses. These losses reduce overall efficiency, especially at partial load.

While standard-efficiency induction motors (IE1/IE2) can be inefficient, modern premium-efficiency models (IE3 and IE4) have closed the gap significantly. At or near full load, these motors can achieve peak efficiencies exceeding 95%, rivaling top-tier BLDC systems.

Yet, their efficiency drops sharply under partial load—a common operating condition in real-world applications. To enable speed control and improve efficiency in variable-load scenarios, induction motors are typically paired with a Variable Frequency Drive (VFD). However, the VFD itself consumes power, adding 2–3% system losses due to conversion inefficiencies.

Direct Comparison: BLDC vs. AC Induction with VFD

When comparing a complete BLDC system (motor + electronic controller) to an AC induction motor with a VFD, the efficiency advantage often leans toward BLDC, especially in dynamic applications.

• At full load: Both systems can achieve similar peak efficiencies (mid-90% range), with IE4 induction motors and high-end BLDC units performing comparably.
• At partial load and variable speed: The BLDC motor’s lack of rotor losses gives it a clear edge. It maintains high efficiency even at low speeds and light loads, whereas the induction motor + VFD combination suffers from declining motor efficiency and added drive losses.

Additionally, BLDC motors often offer better power density and faster dynamic response, which can further enhance system-level performance.

Conclusion: The Right Tool for the Job

In summary, modern brushless DC (BLDC) motors generally offer superior energy efficiency compared to AC induction motors, particularly in applications with variable speed, variable load, or frequent start-stop cycles. Their ability to eliminate rotor copper losses and operate efficiently across a broad range of conditions makes them the preferred choice for energy-conscious designs.

That said, the AC induction motor remains a strong option for constant-speed applications where it can be sized to operate near its peak efficiency point. Its lower upfront cost and proven reliability make it a cost-effective solution in many industrial settings.

The role of the professional engineer is not to favor one technology over another, but to select the motor system that maximizes efficiency and total cost of ownership for the specific application. For variable-duty systems, BLDC is often the better long-term investment. For steady-state operations, a premium-efficiency induction motor with proper sizing may be the optimal choice.

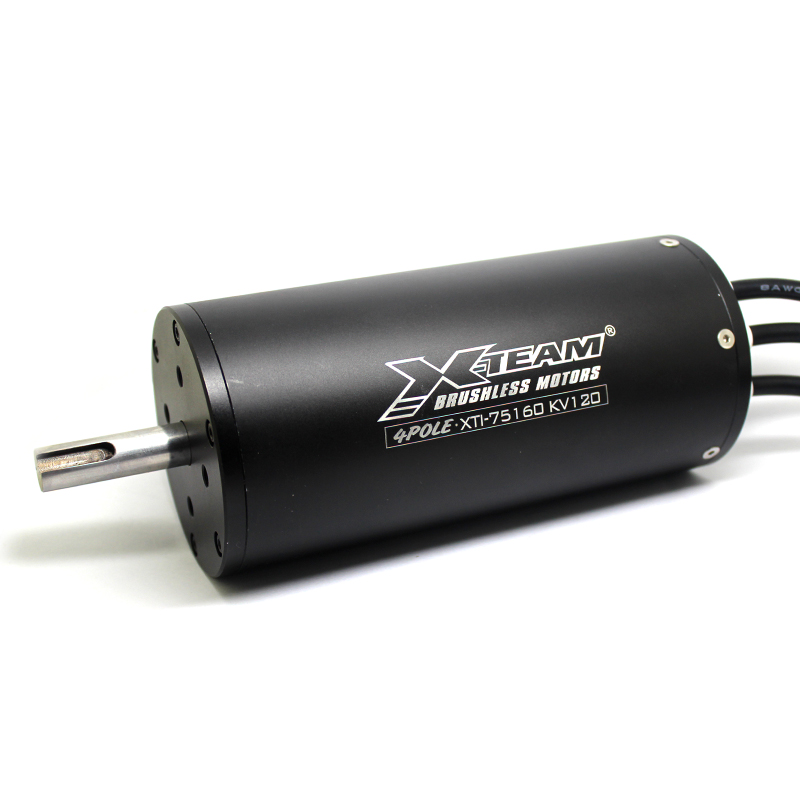

That’s all for the discussion on “Are DC Motors More Efficient Than AC? ” If you have any needs for brushless motor products, visit X-TEAM to choose the products you need. Go to store.
