Do DC Motors Need Capacitors?

The short answer is: most basic DC motors do not require capacitors to function, but capacitors are often used in specific scenarios to solve performance or electrical issues. The need for a capacitor depends on the type of DC motor (brushed vs. brushless) and the system it’s integrated into. Below is a detailed breakdown of when capacitors are necessary, and when they’re not.

1. Brushed DC Motors: Capacitors Are Not Required (But May Be Useful)

Basic brushed DC motors—found in small appliances (e.g., toy cars, electric drills) or simple circuits—operate without capacitors. Their core design relies on brushes, a commutator, and the interaction between stator and rotor magnetic fields to spin, which doesn’t depend on capacitive components. However, capacitors are sometimes added for two key reasons:

• Reducing Electrical Noise (EMI Suppression): As the brushes slide across the commutator, they create small electrical sparks (called “arcing”). These sparks generate electromagnetic interference (EMI) that can disrupt nearby electronics (e.g., radios, sensors). A small capacitor (typically 0.1–1 µF) connected across the motor’s power terminals acts as a “filter,” absorbing the noise and preventing it from spreading through the electrical system.
• Smoothing Voltage Spikes: When a brushed DC motor stops suddenly (e.g., due to a load change), the rotor’s momentum can cause a brief voltage spike (called “back EMF rebound”). A capacitor can absorb this spike, protecting the motor’s windings and the external power source (e.g., a battery or controller) from damage.

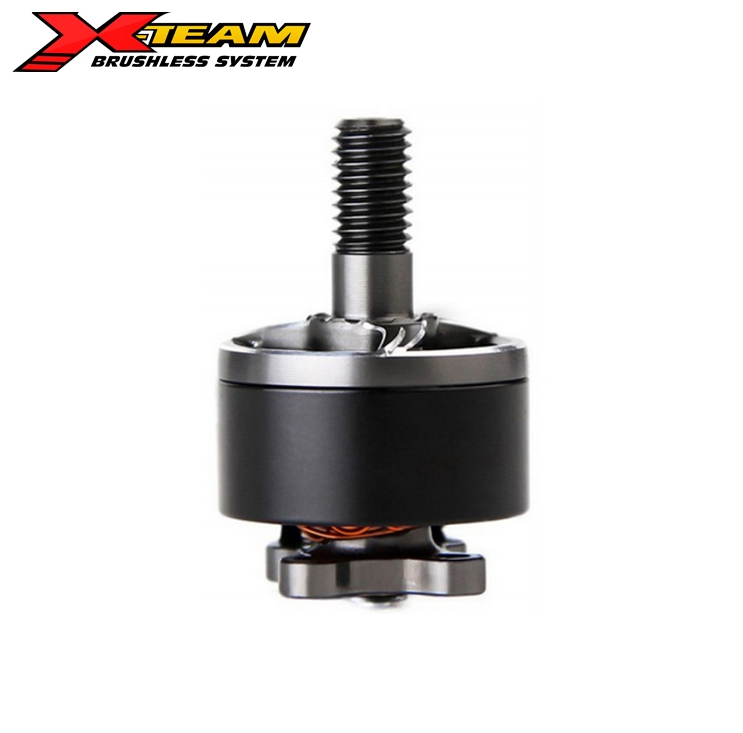

2. Brushless DC (BLDC) Motors: Capacitors Are Rarely for the Motor Itself—But Critical for Controllers

BLDC motors, which use electronic speed controllers (ESCs) instead of brushes, do not need capacitors for their core rotation. The ESC handles current switching and rotor position tracking, which doesn’t require capacitors in the motor’s internal design. However, capacitors are almost always used in the ESC that powers the BLDC motor:

• Stabilizing Power Supply: ESCs draw intermittent, high-current pulses from the DC power source (e.g., a lithium-ion battery) to switch stator windings. A large capacitor (often 100–1000 µF) in the ESC acts as a “energy buffer”: it stores power during low-current periods and releases it during high-current pulses, keeping the voltage stable and preventing the battery from being overloaded.
• Filtering Ripple: If the ESC’s power source has small voltage fluctuations (ripple), a capacitor smooths these out, ensuring the BLDC motor receives consistent current—this avoids performance issues like uneven speed or torque.

3. When Capacitors Are Never Needed for DC Motor

In simple, low-power DC motor setups—such as a small brushed motor powered directly by a AA battery and controlled by a basic switch—capacitors are unnecessary. The motor will spin reliably, and the lack of a capacitor won’t cause damage or performance problems (since there are no sensitive electronics to disrupt, and the power source is low-voltage).

Key Takeaway

Capacitors are not a “required” component for DC motors to operate. They are optional additions for brushed DC motors (to reduce noise or spikes) and critical supporting components for BLDC motor ESCs (to stabilize power), but they never directly enable the motor’s core function of converting electrical energy to mechanical energy.
